  • Wilwood Master Cylinder Kit 1".
    Item# NWRMC1.$94


    Wilwood Master Cylinder Kit 7/8".
    Item# NWRMC78.$94


    Wilwood Master Cylinder Kit 3/4".
    Item# NWRMC34.$94


    Willwood 1" Master Cylinder Kits.
    Remote and Compact in design.
    Item# NWMMC1...$95


    Willwood 7/8" Master Cylinder Kits.
    Remote and Compact in design.
    Item# NWMMC78...$95


    Willwood 3/4" Master Cylinder Kits.
    Remote and Compact in design.
    Item# NWMMC34...$95


    Quick Car Vertical Liquid Filled Mini Brake Gauges.
    Item# NQCVBG.$70



    Quick Car Horizontal Liquid Filled Mini Brake Gauges.
    Item# NQCHBG...$70


    Wilwood Brake Pedal for Dual master cylinders
    Item# NWBP80 Pedal length 9.25...$187


    Wilwood Brake Pedal for Dual master cylinders
    Item# NWBP81 Pedal length 11.25..$188


    Pro and NXS chassis brake pedal mounting bracket. Welds to firewall 1inch tube for mounting brake pedal assembly. May fit other chassis with 1 inch tube.
    Item# PROBPB...$43


    Pro and NXS chassis gas pedal mounting bracket. Welds to firewall 1inch tube for mounting gas pedal. May fit other chassis with 1 inch tube.
    Item# PROGPB...$27


    Wilwood Dynalite Brake Caliper #120-9689 with 2 pistons and 3.75 hole spacing..Replaces Wilwood Caliper #120-4060.
    Item# NWBC89.$128


    Wilwood Dynalite Brake Caliper #120-9687 with 2 pistons and 3.25 hole spacing..Replaces Wilwood Caliper #120-4062).
    Item# NWBC87..$128


    These PolyMatrix E Compound brake pads from Wilwood are an excellent choice for weekly racing on all types of dirt tracks. Rotor life is ultimately extended with these E Compound pads over other hard or abrasive brake pad compounds....Fits Wilwood Calipers.#120-9689 or old caliper #120-4060 and 120-9687 or old caliper #120-4060.
    Item# NWBPE......$55


    Willwood DOT4 racing brake fluid
    ITEM# NW5BF....$15

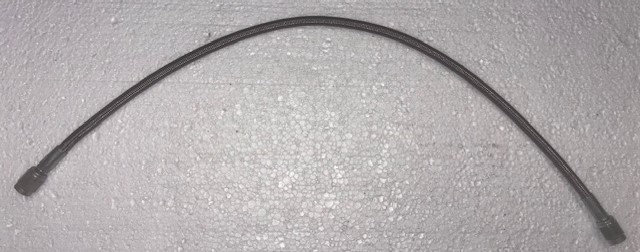

    AN3 Braided Brake lines 2 straight ends

    ITEM# N10BKL 10"..$12
    ITEM# N12BKL 12"..$13
    ITEM# N14BKL 14"..$13
    ITEM# N16BKL 16"..$14
    ITEM# N18BKL 18"..$14
    ITEM# N20BKL 21"..$15
    ITEM# N24BKL 24"..$16
    ITEM# N28BKL 28"..$17
    ITEM# N30BKL 30"..$18
    ITEM# N36BKL 36"..$19
    ITEM# N48BKL 48"..$22


    Front Caliper bracket..3.75"
    ITEM# NCBF75C..$13.50


    Front Caliper bracket..3.25"
    ITEM# NCBF25D..$13


    Rear Toyota Caliper bracket..3.75"
    ITEM# NCBR75A..$13.75


    Rear Toyota Caliper bracket..3.25"
    ITEM# NCBR25B..$13.25

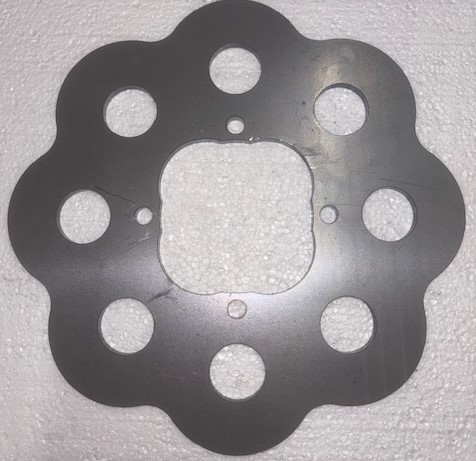

    Front Scalloped Steel Rotor is 9.5" O.D. x .250 thickness and fits aluminum: NXS Toyota hub, NXS Chevette hub, Pro Toyota hub 8000 and Pro 80001. Will fit other Toyota style hubs with 3.8125" diagonal bolt spacing, center bore hole 2.875".
    ITEM# PRO8010..$52

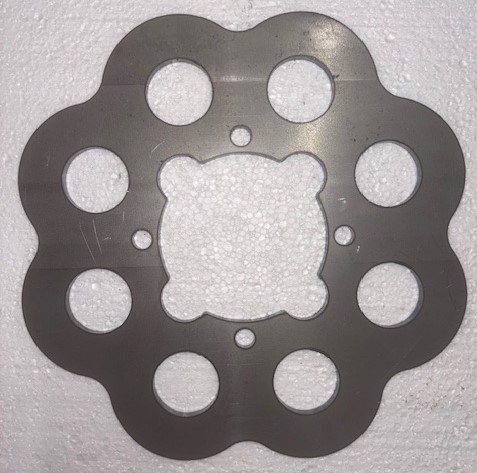

    Front Scalloped Steel Rotor is 9.875" O.D. x .250 thickness and fits aluminum: NXS Toyota hub, NXS Chevette hub, Pro Toyota hub 8000 and Pro 80001. Will fit other Toyota style hubs with 3.8125" diagonal bolt spacing, center bore hole 2.875".
    ITEM# PRO8009..$52


    Front Rotor with center offset originally made to fit Toyota hubs, but will fit our NXS or Pro aluminum hub or hubs with 3.8125" diagonal bolt spacing, center bore hole size of 2.875". The rotors outside dimension is 10".
    ITEM# NBRF..$35


    Rear Rotor scalloped, fits stock Toyota 10 & 8 bolt rear axles. 10.5" O.D. with 2 3/8 deep hat. Weighs 7.7 lbs.
    ITEM# NBRRS..$75


    Rear Rotor fits stock Toyota 10 & 8 bolt rear axles. 10.5" O.D. with 2 3/8 deep hat. Weighs 10.5 lbs.
    ITEM# NBRR..$43

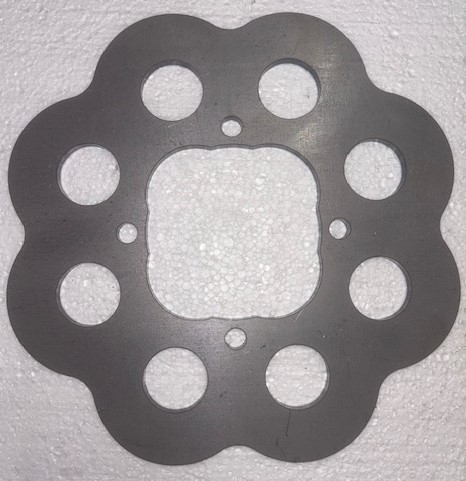

    Front Scallop Rotor is 9.5" O.D. will fit Pro7996 Chevette aluminum front hubs. Has 4.250" diagonal bolt spacing, with a center bore hole size of 3.50".
    ITEM# PRO8013..$52

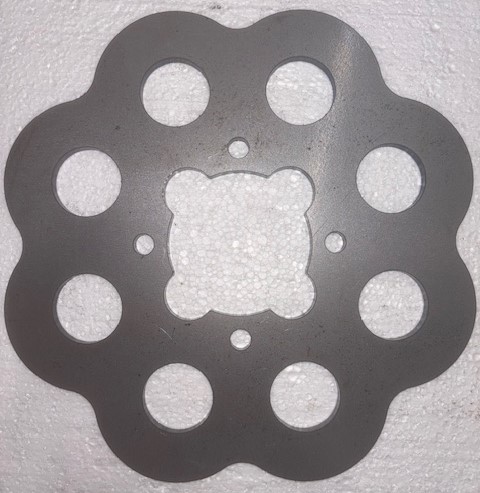

    Rear Scallop Rotor is 9.875" O.D. will fit Winters, Winters NXS hub, Winters BRP8003 or DMI quick change rearend hubs, and Pro7996 Chevette hubs . Has 4.1875" diagonal bolt spacing, with a center bore hole size of 3.5625".
    ITEM# PRO8011..$52

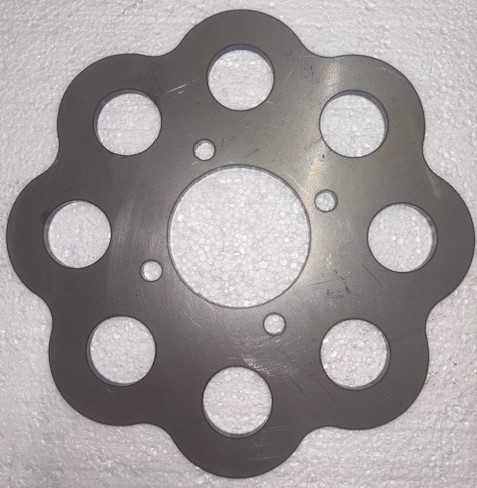

    Rear Scallop Rotor is 10.5" O.D. will fit Winters, Winters NXS, Winters BRP8003 or DMI quick change rearend end hubs and Pro7996 Chevette hubs. Has 4.1875" diagonal bolt spacing, with a center bore hole size of 3.5625".
    ITEM# PRO8012..$52


    Wilwood Brake Bias Cable Kit.
    Item# NW990..$52

    Brake mount tab weld on.
    ITEM# NAS030...$1.50

    Brake tab mount clip.
    ITEM# NAS150...$1.50

    Brake shut off valve.
    ITEM# NAS010...$68

    Brake proportion valve.
    ITEM# NAS025..$39


    Front 14" braided brake line kit will connect to steel 3/16 brake lines. Front kit includes all as shown. With 2 weld on tabs and clips.
    Comes with list of following parts.
    2- NAS150
    2- NF3203
    2- NF201
    2- N14BKL
    ITEM# NXSFBLK...$54

    Rear 2 axle 21" braided brake lines and center brake line is 16". Kit will connect to steel 3/16 brake lines. Rear kit includes all as shown.
    Comes with list of following parts.
    1- NAS150
    1- NF201
    1- NF3403
    2- NF3603
    2- N21BKL
    1- N16BKL
    ITEM# NXSRBLK...$62

    Willwood brake bleeder.
    Item# NWBB...$3.

    Nylon 3/16 " brake line.
    Item# PRO48028...$0.75/ft.

    Steel Brake fittings.
    Male An3 - Male 1/8 NPT.
    Item# NAS500....$3.65

    Steel Brake fittings 45.
    Male An3 - Male 1/8 NPT.
    Item# NF303S....$8.00

    Steel Brake fittings 90.
    Male An3 - Male 1/8 NPT.
    Item# NAS018....$6.25

    Aluminum brake, 90 degree Gauge fitting.
    Female 1/8" NPT- Male An3.
    Item# NXP903...$6.75

    Aluminum brake gauge fitting.
    Item# NF020...$5.85

    Steel Brake fitting.
    Male An3-24IFF Female.
    Item# NF201...$6.00

    Steel Brake fitting.
    Male An3-24IFF Male.
    Item# NAS029....$3.25

    Male An3 - Male An3 90.
    Item# NAE817...$14.00

    Steel Tee fitting.
    An3 x Female 1/8 NPT x An3.
    ITEM# NF903...$10.50

    Steel Tee fitting.
    An3 x Female 24-IFF x An3.
    ITEM# NAE909...$15.00

    Steel fitting 90.
    Female 1/8 NPT - Male An3.
    ITEM# NXP903...$6.00

    Brass brake fitting.
    Female 24IFF - Male 1/8 NPT.
    ITEM# NA120...$2.15

    Brass TEE fitting.
    Female 1/8 x 1/8 x 1/8.
    ITEM# ND025...$3.75

    Brake shut off valve.
    1/8" NPT in/out.
    .5"W x 1.75"L x 1.62"T.
    ITEM# NA010...$45.00

    Nylon 3/16 brake line parts.
    Brass 3/16 - 1/8 NPT.
    ITEM# NAS032...$2.25

    Nylon 3/16 brake line parts.
    90 Brass 3/16 - 1/8 NPT.
    ITEM# NAS033...$3.75

    Nylon 3/16 brake line parts.
    Brass 3/16 male union.
    ITEM# NAS034...$4.50

    Nylon 3/16 brake line parts.
    Brass 3/16 male Tee.
    ITEM# NAS035...$10.25

    Nylon 3/16 brake line parts.
    Brass 3/16 compression ends.
    ITEM# NAS036...$1.00

    Fragola brand black.
    Aluminum Brake fitting.
    Male An3 - Male 1/8 NPT.
    Item# NF3603..$5.75

    Fragola brand black or blue.
    Aluminum Brake fittings 45.
    Male An3 - Male 1/8 NPT.
    Item# NF3303....$10

    Fragola brand black or blue.
    Aluminum Brake fittings 90.
    Male An3 - Male 1/8 NPT.
    Item# NF3203....$10.50

    Fragola brand black.
    Aluminum Tee fitting.
    AN3 x AN3 x AN3.
    ITEM# NF3403...$12.75

    Fragola brand black.
    Aluminum Tee fitting.
    AN3 x 1/8 NPT x AN3.
    ITEM# NF8503...$10.75

    Fragola brand black.
    Aluminum TEE fitting.
    AN3 x AN3 x 1/8 NPT.
    ITEM# NF8603...$14.75

    Fragola brand black.
    Aluminum TEE fitting.
    Female 1/8 x 1/8 x 1/8 NPT.
    ITEM# NF8701...$24.75

    Fragola brand black.
    Aluminum TEE fitting.
    An3 x An3 x Female An3.
    ITEM# NF8301...$23.75

    Fragola brand black.
    Aluminum Tee fitting.
    An3 x Female An3 x An3.
    ITEM# NF8201A...$21.75

    Fragola brand black.
    Male 1/8" union.
    Item# NF8101..$3.75

    Fragola brand black.
    Male An3 - Male An3 90.
    Item# NF3103..$12.75

    Fragola brand black.
    Female 3an - Male 3an 90.
    Item# NF3101..$16.75

    Fragola brand black.
    Female An - Female An 90.
    Item# NF6303.An3-An3.$22.75

    Fragola brand black.
    Female An3 - Male 1/8 NPT.
    Item# NF303A..$16.75

    Fragola brand black.
    Male union An-An fitting.
    ITEM# NF1503 An3-An3.$3.75

    Fragola brand black.
    Female union An-An fitting.
    ITEM# NF6103 An3-An3.$7.75

    Fragola AN3 90 degree bulkhead fitting.
    ITEM# NFB303...$9.75


    Fragola AN3 bulkhead nut
    ITEM# NFB303N..$1.75
