    Winters Q.C. 3300 Series
    Diagram & Parts List.
    Click Image to enlarge.

    		 CLICK IMAGE TO ENLARGE

    Winters Q.C. Baby Grand Hubs.
    Diagram & Parts List.
    Click image to enlarge.



    Winters 3.78 Quick Change rears. Complete floater with gun drilled axles as shown. Choice of a flanged or yoke pinion end or as shown. ITEM# WINQC3800...$2595.
    Winters Gear Sets.. In stock.
    #3800 sets 1-12. $87.
    #4400 sets 1-15 $89.
    Winters 4 x 4.5 hub. Winters #2258-450..$134

    Winters stud only.

    Stock thread length 2.25
    ITEM# NAWINS4..$5

    Longer ARP thread length 2.5
    ITEM# NARPS..$9

    NXS black anodized aluminum 3rd link mount set. Clamp on axle mount and bolt on center section mount for Winters Q.C. rearends with 2.5 inch tube. Brackets can be turned around backwards and mounted to rearend for "Z LINK" style 3rd links. Clamp is grooved to install bolt into hole you will drill into axle tube to stop axle mount from twisting.

    Item# N3LMSA..$122
    NXS black anodized aluminum 3rd link axle mount. 3rd link clamps on Winters axle tube mount. Bracket can be turned around backwards and mounted to rearend for "Z LINK" style 3rd links. Use grade 8 bolt to install into hole you will drill into tube to stop axle mount from twisting. Fits 2.5 Inch tubing. Use 2 of these on Toyota rearends with 2.5 inch tube.

    Item# N3LAMA..$84
    NXS black anodized aluminum 3rd link center mount. 3rd link bolt on bracket to Winters Q.C. rearends. Bracket is slotted so it can be turned around backwards and mounted to rearend for "Z LINK" style 3rd links. Mount one on each side of center section for 3rd link mounting through tunnel.

    Item# N3LCMA..$48

    NXS extended black anodized aluminum 3rd link mount set. Clamp on axle mount and bolt on center section mount for Winters Q.C. rearends with 2.5 inch tube. Clamp is grooved to install bolt into hole you will drill into axle tube to stop axle mount from twisting. Extended length allows installation of biscuit or spring bar.

    Item# N3LMSA2..$134
    NXS extended black anodized aluminum 3rd link axle mount. 3rd link clamps on Winters axle tube mount. Use grade 8 bolt to install into hole you will drill into tube to stop axle mount from twisting. Fits 2.5 Inch tubing. Use 2 of these on Toyota rearends with 2.5 inch tube. Extended length allows for installation of biscuit or spring bar.

    Item# N3LAMA2..$96
    NXS extended black anodized aluminum 3rd link center mount. 3rd link bolt on bracket to Winters Q.C. rearends. Extended length allows for installation of biscuit or spring bar.

    Item# N3LCMA2..$58

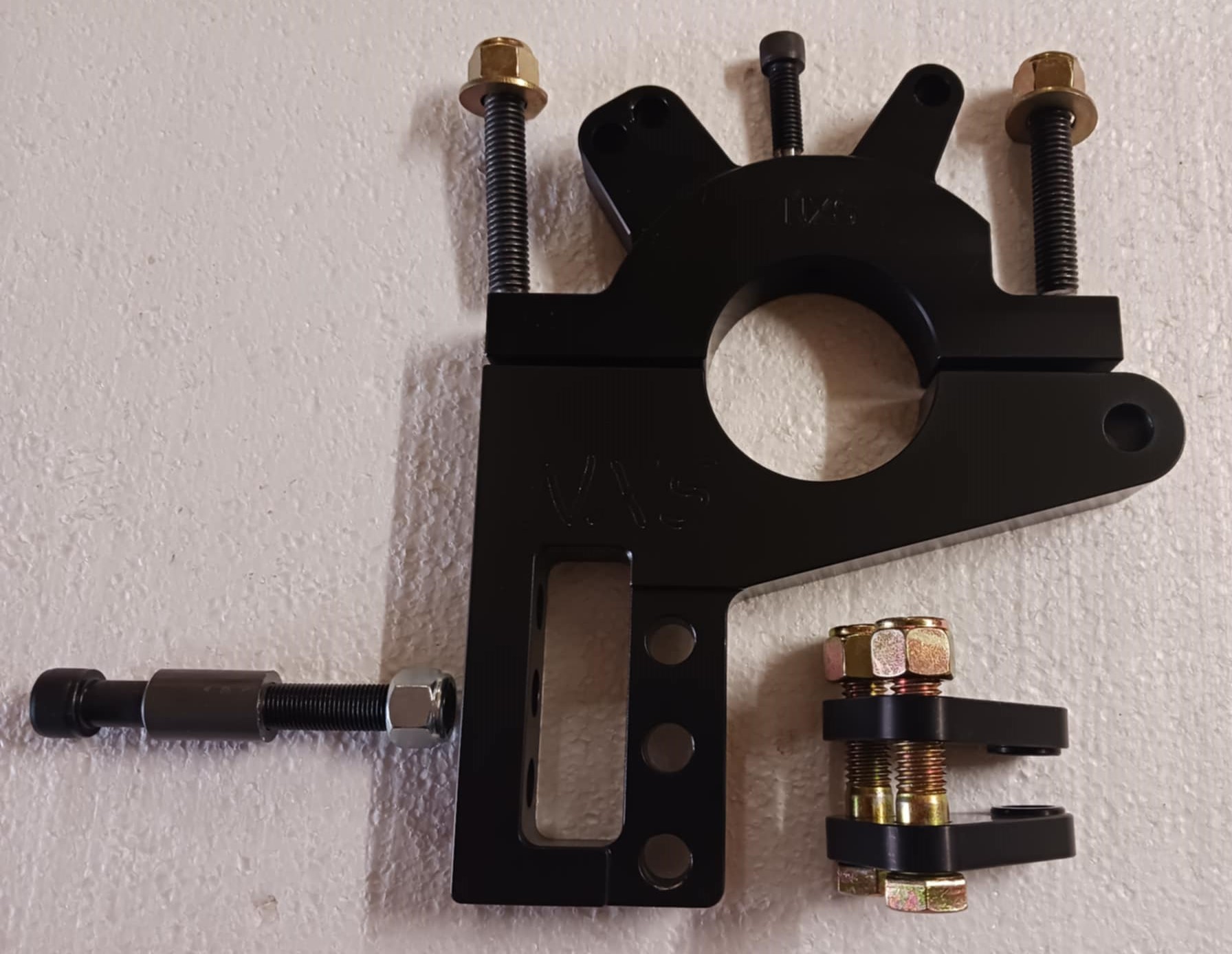

    NXS black anodized billet aluminum birdcage for Winters Q.C. Clamps on to 2.5" tube. Complete as shown left or right side.
    Has three rear shock mounting locations and five location holes for mounting shock on front side. Also trailing arm can be mounted in 15 different positions to allow for lots of adjustability. Accepts both 3.25 or 3.75 calipers
    ITEM# NWABCKIT...$309 each
    NXS black anodized billet aluminum birdcage for Winters Q.C. Clamps on to 2.5" tube. Complete as shown right side.
    ITEM# NWBCRTKIT...$195
    Complete as shown left side
    ITEM# NWBCLTKIT...$195
    NXS black anodized billet aluminum bracket kit for winters Q.C. Complete bracket kit comes as shown with both left and right birdcages, 2 caliper mounts, both center link mounts and all socket head screws.
    Save $39 purchasing this kit.
    ITEM# NWMKIT...$505
    NXS brand Winters non adjustable right side birdcage kit. Comes complete as shown. Choice of 3.25 or 3.75 inch caliper brackets. Save $13 off individual prices.
    ITEM# NWFSBCKITR..$196.

    		 NXS brand Winters non adjustable left side birdcage kit. Comes complete as shown. Choice of 3.25 or 3.75 inch caliper brackets. Save $13 off individual prices.
    ITEM# NWFSBCKITL..$196.
    NXS brand Winters Upper half of non adjustable birdcage.
    ITEM# NWFSBCT...$62.


    NXS brand Winters non adjustable bolt set of 4. Stainless.
    ITEM# NWFSBC4S...$8.

    NXS brand Winters lower half of non adjustable birdcage.
    ITEM# NWFSBCB...$62
    NXS brand left trailing arm and shock mount for non adjustable birdcage.
    ITEM# NWFSBCSML...$68
    NXS brand right trailing arm and shock mount for non adjustable birdcage ITEM# NWFSBCSMR...$68.

    NXS brand 3.25 caliper mount for non adjustable birdcage.
    Item# NWFSCM325...$21
    NXS brand 3.75 caliper mount for non adjustable birdcage.
    Item# NWFSCM375...$21
    NXS and Pro chassis J-Bar.
    adjustable. Comes as shown.
    ITEM# NXSJB...$125.

    NXS rearend chain limiter kit. Adjustable. Comes as shown.
    ITEM# NLRCKIT...$125
    NXS now has Winters customized rearend covers made to your specs. Black anodized billet aluminum with your name and number or other lettering. At a lower cost then you can buy the stock cover.
    ITEM# NWGCE...$162



    Nxs now has DMI birdcages that attach to Winters rearend. Welding required.
    Left side.
    ITEM# NDMIWINL...$196.



    Nxs now has DMI birdcages that attach to Winters rearend. Welding required.
    Right side.
    ITEM# NDMIWINR...$196.
    NXS black anodized billet aluminum caliper mount for Winters Q.C.
    Aluminum caliper mount fit 3.25" caliper spacing. and are 5/8 inch thick, with 4 threaded holes for easy install.
    Item# NWCM325...$21
    NXS black anodized billet aluminum caliper mount for Winters Q.C.
    Aluminum caliper mount fit 3.75" caliper spacing. and are 5/8 inch thick, with 4 threaded holes for easy install.
    Item# NWCM375...$21

    NXS black anodized billet aluminum pinion plate for Winters Q.C.
    Double sided pinion plate has mounting holes on both sides with 2 extra top holes.
    \ Requires #WIN3327 seal and O-ring #WIN7439 not included ITEM# NWPP...$145.
    NXS Winters Q.C. Pinion mount.
    Flip for J bar or straight bar mounting.
    ITEM# NWPPSS...$90
    Rear Scallop Rotor fits Winters QC hubs. is 10" inches and are offset they are TUSA legal.
    ITEM# NBRRQC...$85.

    Rear Scalloped Rotor for Winters quick change rearend hubs. Has 4.1875" diagonal bolt spacing, and 3.0" bolt spacing with a center bore hole size of 3.5625". The rotors outside dimension is 9.875" by .280" thickness.
    ITEM# PRO8011..$52

    Rear Scalloped Rotor for Winters quick change rearend hubs. Has 4.1875" diagonal bolt spacing, and 3.0" bolt spacing with a center bore hole size of 3.5625". The rotors outside dimension is 10.5" by .280" thickness.
    ITEM# PRO8012..$52


    Rear Scallop Rotor fits Winters QC hubs. is 10" inches and are offset they are TUSA legal.
    ITEM# NBRRQC...$85.

    Remote quick change rearend fill tank. Has and 10 male fitting on bottom to attach an10 hose.
    ITEM# NRFT..$64

    Remote quick change rearend fill tank kit. Comes with everything needed to attach to your Winters quick change. Comes as shown with 3 feet of hose.
    ITEM# NFRTKIT..$125


    Winters keyed washer.
    Winters #1664 $2.90

    Winters slotted washer.
    Winters #1665 $2.60
    Winters Locking Nut Kit.
    Winters #1865 $14.40
    Winters right side bell.
    Winters #3306 $253

    Winters pinion shaft double flanged bearing cup.
    Winters #3307 $132
    Winters lower shaft bearing (Yoke Input).
    Winters #3324 $23
    Winters pinion seal plate.
    Winters #3325 $53

    Winters #3327 $14
    Winters pinion Yoke.
    Straps & screws sold separately.
    Item# NWIN3328 $75
    Winters pinion yoke strap kit.
    Item# DSK2SK..$12.00.

    blank

    Winters lower shaft.
    Winters #3340..$136.
    Winters gear cover. With beaarings
    Winters #3342. $202

    Winters gear cover gasket.
    Winters #3343 $4.50

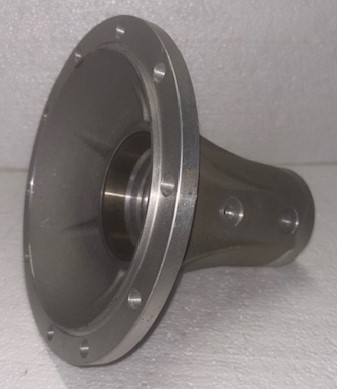

    Winters left side bell
    Winters #3345 $272
    Winters large Oring, side bell.
    Winters #3351 $9.50

    Winters tube snout.
    Winters# 3361...$105
    Winters Toyota Pinion Flange.
    Winters #3362..$100

    		 Winters axle tube
    Winters #3363 x length $153.

    Axle tube with camber
    Winters #3363-01 x length $239

    Toyota axle tube
    Winters #3364 x length $185

    Winters drive yoke bolt washer.
    Winters #5037 $9.50
    Winters gun drilled axle
    Winters #5067G x length $200.
    Winters spindle nut.
    Winters #5101T $8.40

    Winters bearing shim, spool.
    Winters #5295 $8.50
    Winters drive hub flange.
    Winters #6548-500 $141
    Winters Hub cap.
    Winters #6579 $46

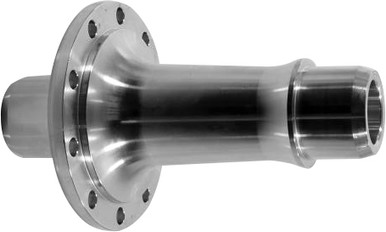

    Winters 31 Spline Aluminum spool.
    Winters #6839 $415.00
    Winters Inspection plug.
    Winters #6857 $23
    Winters drive yoke bolt.
    Winters #7109Y $2.30

    Winters drive hub screws.
    Winters #7120 $1.75 ea.
    Winters hub bearing seal.
    Winters #7203 $9.30
    Winters seal,side bell.
    Winters #7205 $11.30

    Winters bearing cup side bell.
    Winters #7310 $12
    Winters hub bearing race.
    Winters #7323.. $9
    Winters hub bearing.
    Winters #7325 $16

    Winters bearing, spool.
    Winters #7340 $41

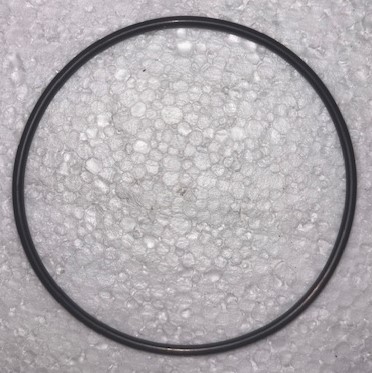

    Pinion seal Plate I.S. O-ring.
    Winters #7439..$2.
    Winters Inspection plug Oring.
    Winters #7454 $3.50

    Winters hub cap Oring.
    Winters #7458 $2.25
    Winters O.S. Oring, seal plate.
    Winters #7484 $5.25

    		 Winters Gen2 gear cover bearing.
    Is 2.0472 O.D.
    Winters #7532...$25.50.
    Winters retaining ring lower shaft.
    Winters #7634...$1.
    Winters retainer ring.
    Winters #7689 $5
    Winters gear cover nut.
    Winters #7794A $4.50

    Winters oil level plug.
    Winters #7874 $2.50
    Winters slotted washer screw.
    Winters #7938 $1 ea.
    Winters hub cap screw.
    Winters #8084 $1.30

    Winters retaining ring rear bearing.
    Winters #8323 $4.10
    Winters lower shaft bearing.
    Winters #8608 $19
    Winters pinion shaft I.S. bearing.
    Winters #8609 $35.75

    Winters pinion shaft O.S. bearing
    Discountinued use 8609.
    Winters #8610 $35.75
    Winters gear cover bearing (gen1).
    Is 1.8504 O.D.
    Winters #8611 $44
    Winters ring & pinion 3.78.
    Winters #11378...$497.00
    Winters R&P 4.57
    Winters #11457...$596.
    Winters R&P 5.13
    Winters #11513...$596.
